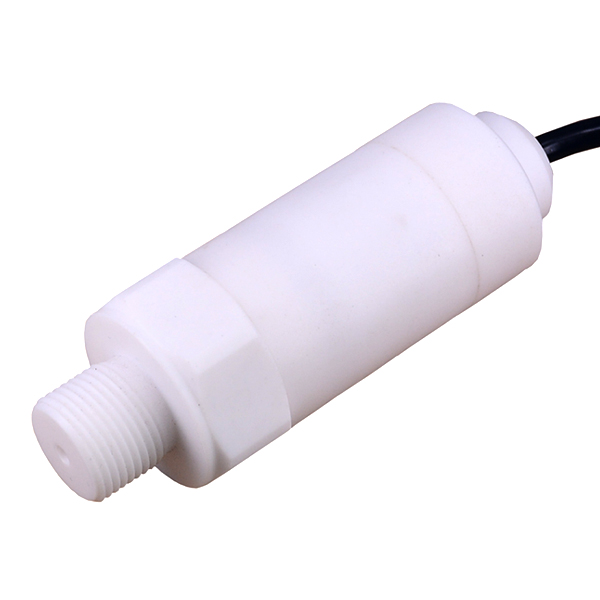

BX-PTL212 Anti-corrosion Pressure Transmitter

一，Description:

The anti-corrosive pressure transmitter is designed and manufactured with high performance ceramic

piezoresistive and corrosion resistant core,and it’s also designed in the form of ceramic temperature stability,high precision and strong anti-corrosion,the use of PTFE,anti-corrosive alloy and other materials with very strong anti-corrosion properties, rational assembly process and strict product quality standards

ensure the quality and performance of the product,and are suitable for all fields where corrosive

fluids are required,gas pressure is accurately measured and controlled.

二，Technical Parameters:

Pressure range:-0.1 to 20bar

Power supply:12-36VDC etc

Signal output:4-20mA,0.5-4.5V etc

Measurement medium:corrosive liquid or gas

Thread:G1/4,NPT1/2 etc

Overload capacity:200%FS

Housing material:PTFE
