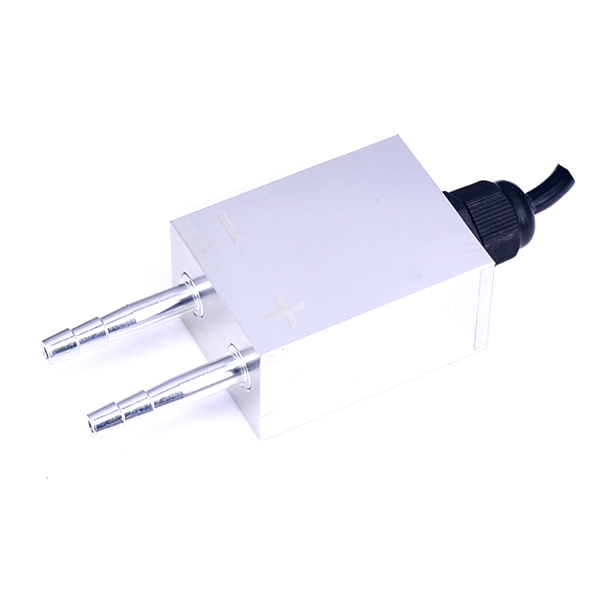

BX-PTD116 Series Differential Pressure Transmitter

一，Features：

1, Small size and easy to install

2, High accuracy and stability and cost performance

3, The range can be adjusted continuously

4, Safety single pole static pressure protection

5, 2 lines 4-20mA standard output,it's optional for HART agreement and other communication agreement

6, Electromagnetic Compatibility

二，Technical Parameters：

Pressure Range：0-100kPa/10Mpa

Pressure Type：differential pressure

Measurement Medium：the air or liquid which is compatible with 316L

Accuracy：+/-0.5%FS;+/-0.25%FS;+/-0.1%FS;+/-0.07%FS

Working Temperature：-20 to 85C

Power Supply：12-32V

Signal Output：4-20mA;0-5V;0-10V;1-5V etc
