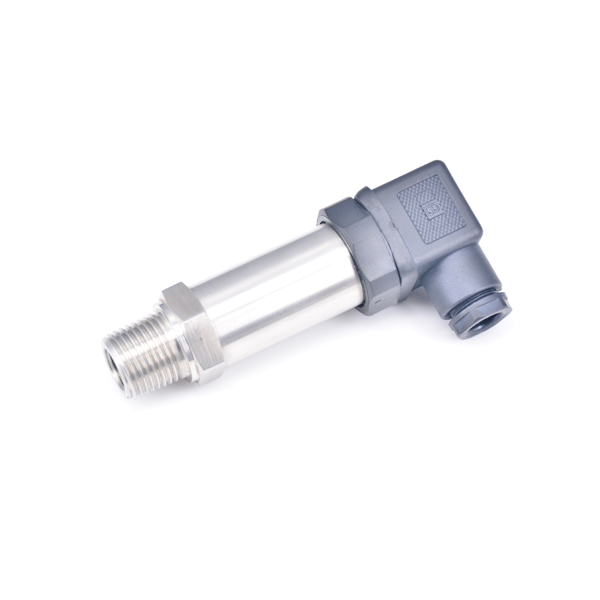

BX-PTM808 Series Construction Machinery Pressure Transmitter

PTM808 is specially designed for the application of hydraulic system,the maximum measured pressure can reach to 800Mpa,the sensor core base is made of the integral stainless steel,no welding or sealing ring structure,no risk of leakage,ensure that can meet the requirements for production safety and reliability.

With stainless steel isolated miniature structure.This product is especially suitable for large pressure range use,It has good stability, wide temperature range and over ten million service life.Widely used in injection molding machine and construction machinery.

一，Characteristics:

Large Pressure Range Use

Ultra-stable technology,Convenient and Reliable

High Frequency Dynamic Response

Adapt to High Temperature Environment

Nice Long-term Stability and Overload Capacity

二，Technical Parameters:

Pressure range:0-70Mpa/800Mpa

Power supply:9-32VDC etc

Signal output:4-20mA etc

Overload capacity:200%FS

Pressure medium:non-corrosive liquid or gas
