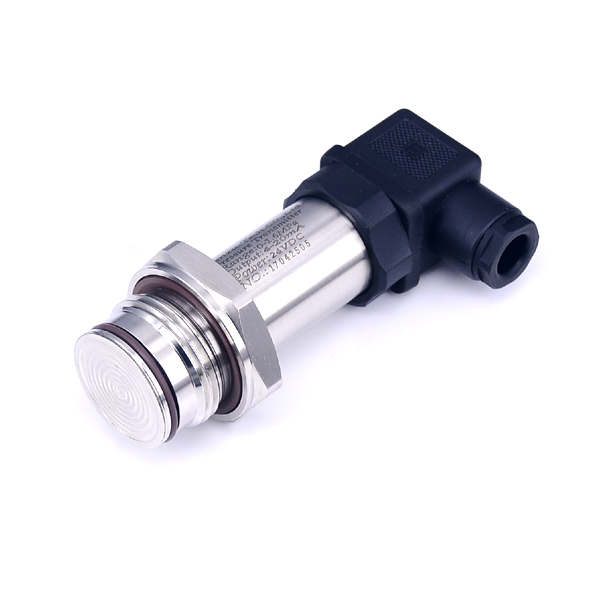

BX-PTF705 Series Flush Diaphragm Pressure Transmitter

一，Feature：

1, High Cost Performance

2, Wide Range of Measurement Medium

3, High Stability and Sensitivity

4, Various Output Signal and can adjust zero and full scale

5, The Protection of Reverse Polarity and over-voltage and over-circuit

6, Fully Stainless Steel Structure

7, Clean Film Diaphragm

二，Technical Parameters：

Pressure Range：-1 to 10bar;0-100Mpa etc

Overload Capacity：2-4 times

Pressure Type：gauge pressure

Pressure Medium：gas or liquid which is compatible with 316L stainless steel

Power Supply：9-32V

Signal Output：4-20mA/0-10V/1-5V/0-5V etc

Accuracy：+/-0.15%FS;+/-0.2%FS;+/-0.5%FS

Working Temperature：-40—125C

Compensation Temperature：-20—80C
