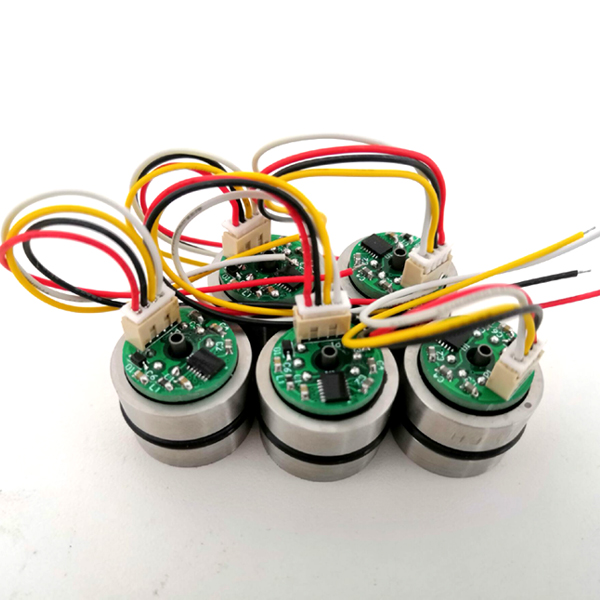

BX-PSM19D I2C Pressure Sensor Module

一，Feature:

High reliability imported diffused silicon pressure chip,all 316l stainless steel material,Ø19 standard OEM package,wide temperature compensation,the signal uses imported high precision, high bandwidth, low delay, low power conditioning chip,16 bit ADC,output corrected by 6 order polynomial,output with CRC protection,the frequency can reach 400kHz,delay less than 0.1ms,rated current low to 3mA.

二，Technical Parameters:

Pressure Range:0-1bar to 400bar

Power supply:2.7-5.5VDC

Output signal:SPI/IIC

Working temperature:-20 to 85C

Long-term stability:±0.3%F.S./year

Overload capacity:200%FS

Sensor core:diffused silicon or ceramic
