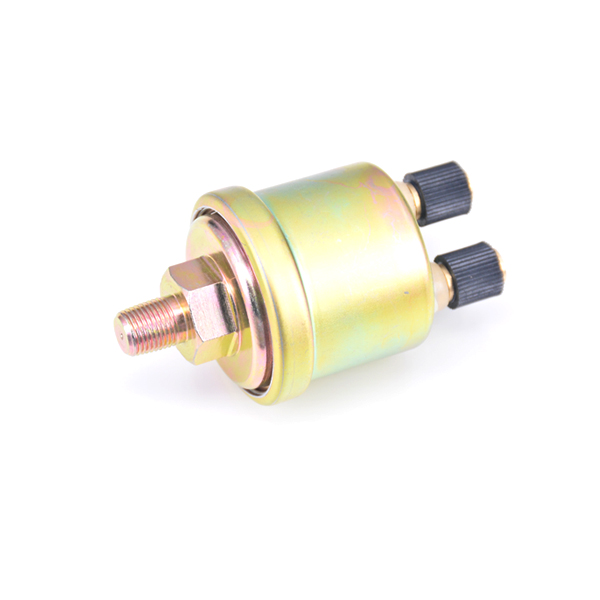

BX-OPS100A Oil Pressure Sender

Technical Parameters:

Brand new VDO type oil pressure sender.

Input: 0-100 psi.

Output: 240-33 ohms resistance.

Wiring:

Case for grounding.

G for resistance output,240-33 ohms.

WK for low pressure(11psi)warning output,it is a switch to ground(case).

When pressure is bigger than 11psi,the WK switch will be open.

When pressure is smaller than 11psi,the WK switch will be closed,or connect to ground.

Accuracy: within 5% full scale.

Thread: 1/8”-27 NPT.

Color-Zinc environment friendly plated,RoHS complianted.

Wiring connectors:M4 stud,with thumb screw attached.
