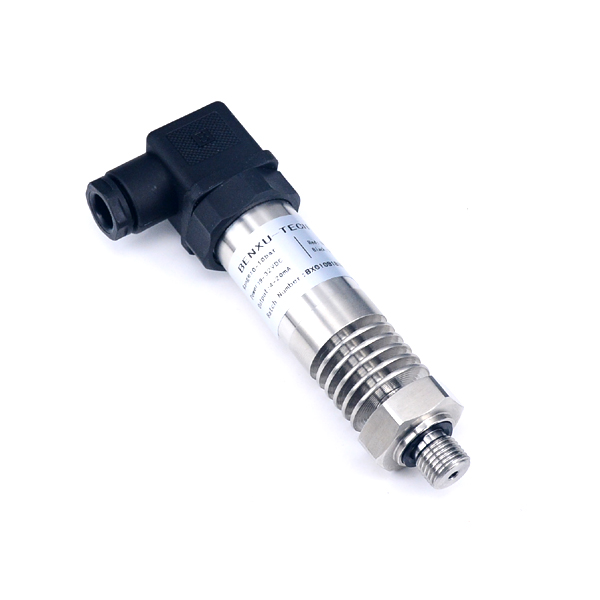

BX-PTH10 Series High Temperature Pressure Transmitter

一，Feature：

1, Special for the high temperature medium

2, Nice stability

3, High overload pressure

4, Large Medium Temperature Rage,can reach to 300℃

5, Various measure range and measure methods

6, Small size and low cost

7, Multifarious Electrical Connection Types

二，Technical Parameters：

Pressure Range：0-120Mpa

Accuracy：+/-0.5%FS;+/-0.15%FS

Overload Capacity：2-4 times

Measurement Medium：the air or liquid which is compatible with 316L

Power Supply：9-32V

Signal Output：4-20mA;0-10V;0-5V etc

Working Temperature：-40 to +120°C;-40 to +300°C

Cable Connection：DIN connector;Fixed Cable;Aviation Plugs

Pressure Connection：G1/4 etc

Blast Proof Type：EXIATTCT6

三，Order Details:

1, Pressure Range and Unit(such as 0~1MPa)

2, Measurement Accuracy

3, Temperature Range

4, Output Signal

5, Pressure Connection

6, Electrical Connection Type(PTH18-DIN;PTH16-Direct Lead;PTH15-Aviation Plug)

7, Power Supply
