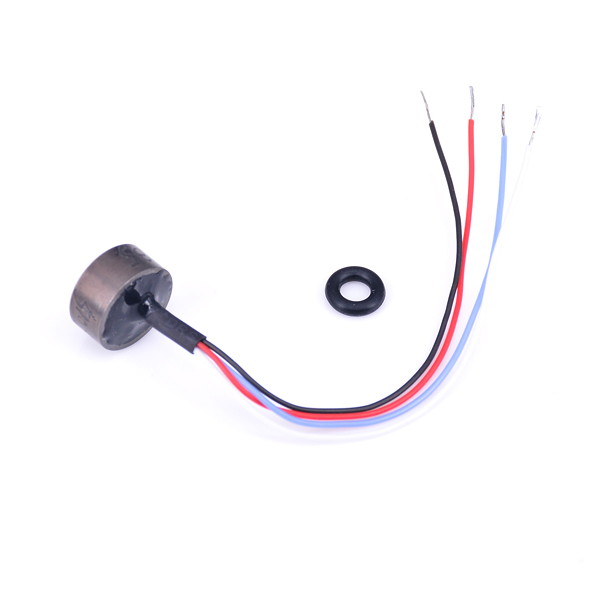

BX-PSC13 Silicon Micro Pressure Sensor

一，Feature:

1, High cost performance

2, High reliability of solid sensor

3, 13mm small size,easy to install

4, High sensitivity

5, Use the 17-4PH stainless steel

6, Hight overload capacity,anti-corrosion and no leakage condition

二，Technical Parameters：

Pressure Range：0-100Mpa

Max overload pressure：2 times

Rupture pressure：4 times

Excitation power supply：5VDC,1.5mA

Response Time：≤1mS

Using temperature：-40~125℃

Compensation temperature：0-80℃

Vibration：10gRMS

Shock：100g

Recommended O ring：Φ8×1.5
